GV-APOE0810-V2

  • PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
  • 10-port 10/100/1000BaseT(X), 8-port with Power over Ethernet
  • IEEE 802.3at Compliant (8 Ports at Full 15.4 W / 4 Ports at Full 30 W)
  • Max. 125 W power consumption
  • VLAN mode for network partition and enhanced performance
  • PD Alive Check
  • 11″ Metal Case
  • Up to 8 GV-IP Camera support

Description

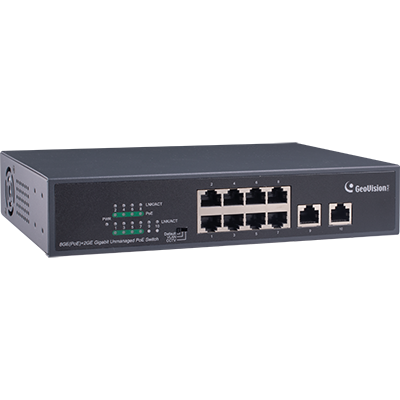

GV-APOE0810-V2 – 10-Port Unmanaged PoE Switch with Uplink Ports

The GV-APOE0810-V2 is a 10-port unmanaged PoE switch with 8 PSE/PoE ports and 2 uplink ports. Supporting the IEEE 802.3at Power over Ethernet standard, it provides up to 32W per port, with a maximum power consumption of 125W. This switch eliminates the need for separate power cables to connect powered devices (PD) like IP cameras and supports power delivery over network cables up to 250 meters (820 feet) at 10 Mbps, offering flexibility for installation.

Ideal for small to medium network environments, the GV-APOE0810-V2 enhances network performance and efficiency. It includes the smart PD Alive Check feature, ensuring the connected devices are operational, and provides the option to isolate each PoE port to improve forwarding rates for optimized data transmission.
